The first DSP metal detector with Intellectual Property Rights in China, suitable for metal contaminants detection in various industries like: aquatic products, meat & poultry, salted roducts, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc.
Metal Detector IMD Series
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferous metals (copper, Aluminum etc.) and stainless steel.
●Special phase adjusting technology
●High sensitivity with stable perf rmance
●Auto balance function
●Touch screen
●USB Port
●Dual-frequency
●Customized re ecter system
●Different surface treatment
●Multi languages
●Customization
●Large memory capacity
●Auto-learning product character
●Finish auto-learning process very soon

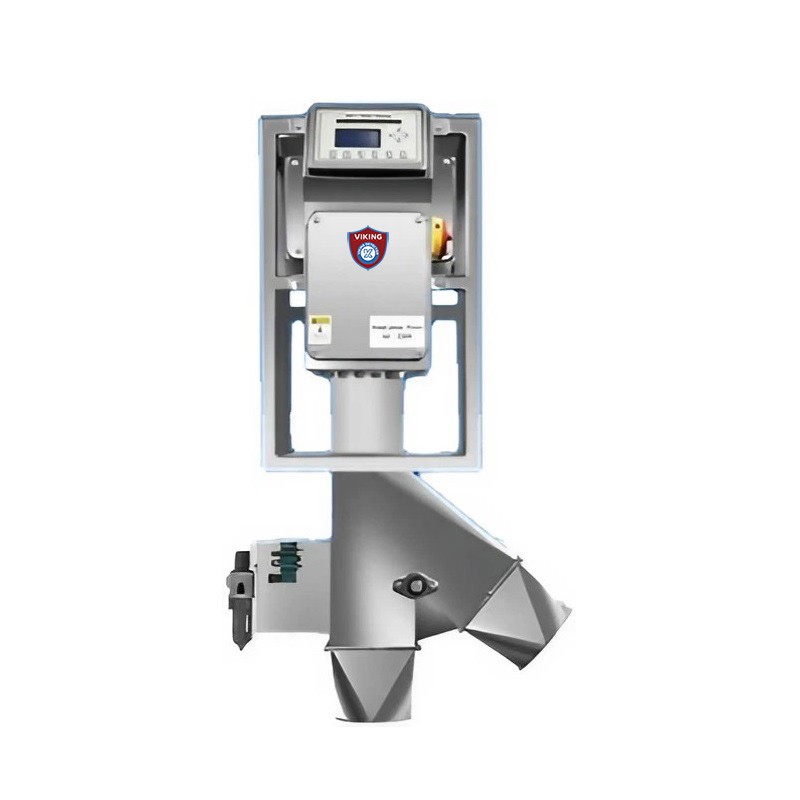

With compact design and small occupied space, this type of metal detector is suitable for the detection of powder, granule or other forms of bulk products.
Model | IMD-P | ||||||
Detection Diameter (mm) | Detection capacity t/h2 | Rejecter Mode | pressure Requirement | power supply | Main Material | Sensitivity 1Φd (mm) | |
Fe | SUS | ||||||
50 | Automatic flap rejecter
| 0. 5Mpa≥ | AC220V (optional) | stainless steel (SUS304) | 0.5 | 1.2 | |
75 | 3 | 0.5 | 1.2 | ||||
100 | 5 | 0. 7 | 1.5 | ||||
150 | 5 | 0. 7 | 1.5 | ||||
Note:
1. The technical parameter above namely is the result of sensitivity by detecting only the test sample inside the pipe. The sensitivity would be affected according to the products being detected and working condition.
2. Detecting capacity per hour is related with product weight, the value of the table is according to the density of water (1000kglm3) ·
3. Requirements for different sizes by customers can be fulfilled
