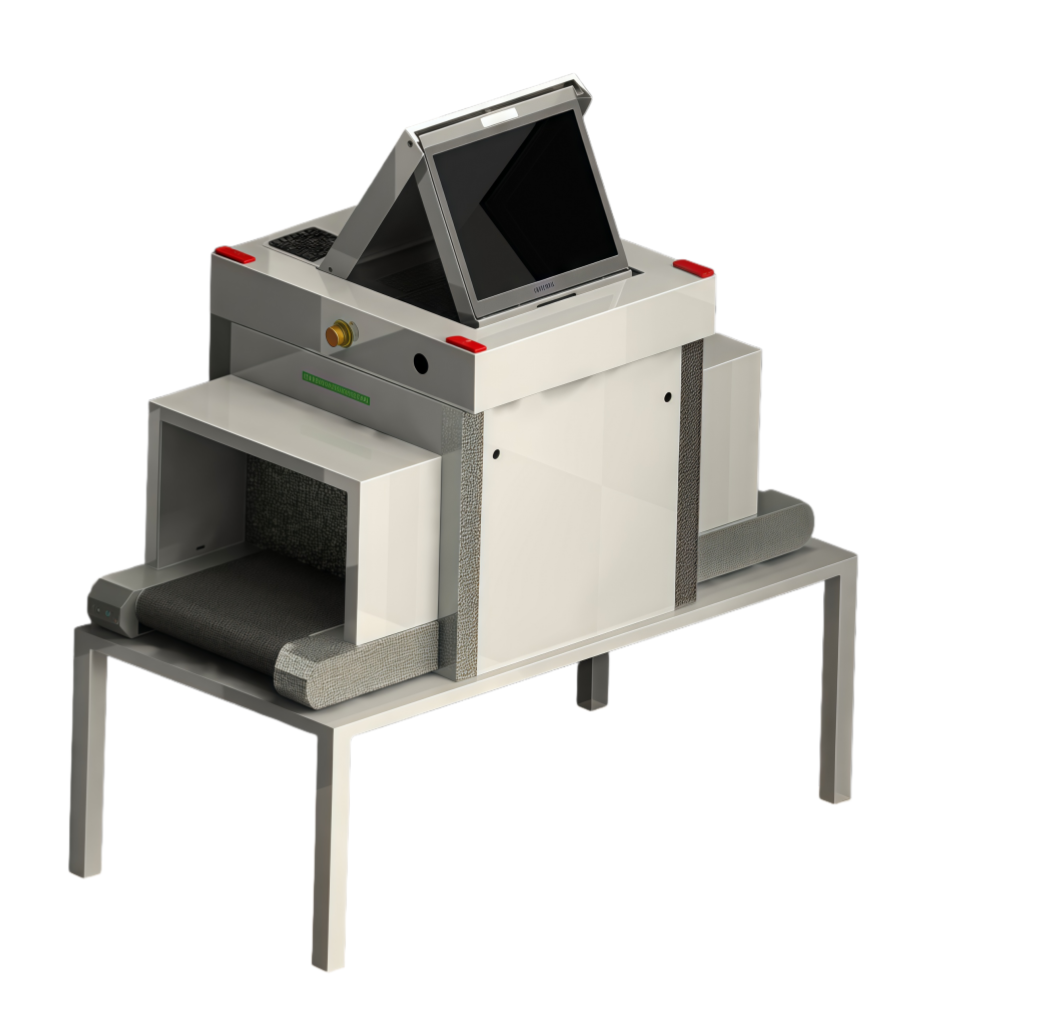

VK-SE5332 DETACHABLE HIGH-SECURITY X-RAY BAGGAGE SCANNER

Overview:

This patent-pending detachable X-ray baggage scanner from Dongguan Viking Technology Co., Ltd. features cutting-edge technology with a split-body design that can be placed on a desktop, eliminating limitations of venue size. We have integrated all controls into a modular structure, allowing independent adjustment of detection performance—even at maximum sensitivity, it can identify concealed items with precision, including 24mm steel plates and 40AWG wires. Thanks to its detachable, space-saving design, it fits easily into restricted areas where traditional scanners cannot operate.

With a maximum tunnel size of 531 × 332 mm, it far exceeds the space efficiency of conventional fixed scanners, enabling it to handle a wider range of luggage and parcels. It also offers flexible deployment, from government offices to entertainment venues, and can be installed in just 15 minutes from unboxing to operation.

Main Features:

• Unique Detachable & Compact Design: Split-body structure allows for desktop placement, perfect for venues with severe space constraints or temporary checkpoints.

• High-Sensitivity Detection: Capable of penetrating 24mm steel plate and resolving wires as thin as 40AWG, ensuring no small threat goes unnoticed.

• Advanced Image Processing Suite: Features over 10 imaging modes including Organic/Inorganic Identification, Edge Enhancement, Super Enhancement, Grayscale Scanning, and Zoom for detailed analysis.

• Smart & Customizable Operation: Offers 4 preset detection modes (Luggage, Parcel, Small Items, High-Security) and allows adjustable sensitivity (0-255 levels) and alarm thresholds.

• Rapid Deployment & Installation: Can be assembled and become operational within 15 minutes, drastically reducing setup time and cost.

• Enhanced Safety & Data Management: Radiation leakage is close to natural background levels. System records inspection count and alarm count for audit and reporting.

General Specifications:

Advanced Functions:

• 10+ Image Processing Modes: Color/Black & White, Organic/Inorganic Identification, Super Enhancement, Edge Enhancement, Partial Enhancement, Grayscale Scanning, Image Restoration, Zoom In/Out, High/Low Energy Penetration, Continuous Observation.

• 4 Preset Detection Modes: Optimized for Luggage, Parcels, Small Items, and High-Security inspection scenarios.

• Customizable Detection: Supports adjustment of image enhancement levels and alarm sensitivity thresholds (0-255).

• Alarm Functions: High-Density & Explosive Detection capabilities.

• Data Statistics: Records and displays inspection count and alarm count.

• Anti-Tamper Setting: 4-digit custom password protection for system settings.

Applications:

Dongguan Viking Technology Co., Ltd. proudly presents the VK-SE5332 X-ray Baggage Scanner, which provides precise detection and reliable performance. It is suitable for a variety of environments with space limitations or requiring flexible deployment, including but not limited to:

• Government Facilities and Security Offices

• Reception Rooms of Important Institutions & Court Dispatch Centers

• Luggage Storage at Road and Railway Terminals

• Embassies and Diplomatic Missions

• Entertainment Venues, Cultural Sites, and Museums

• Prisons and Other Restricted Spaces

• Temporary Security Checkpoints for Events

For more information about this and other security solutions, please contact Dongguan Viking Technology Co., Ltd.
