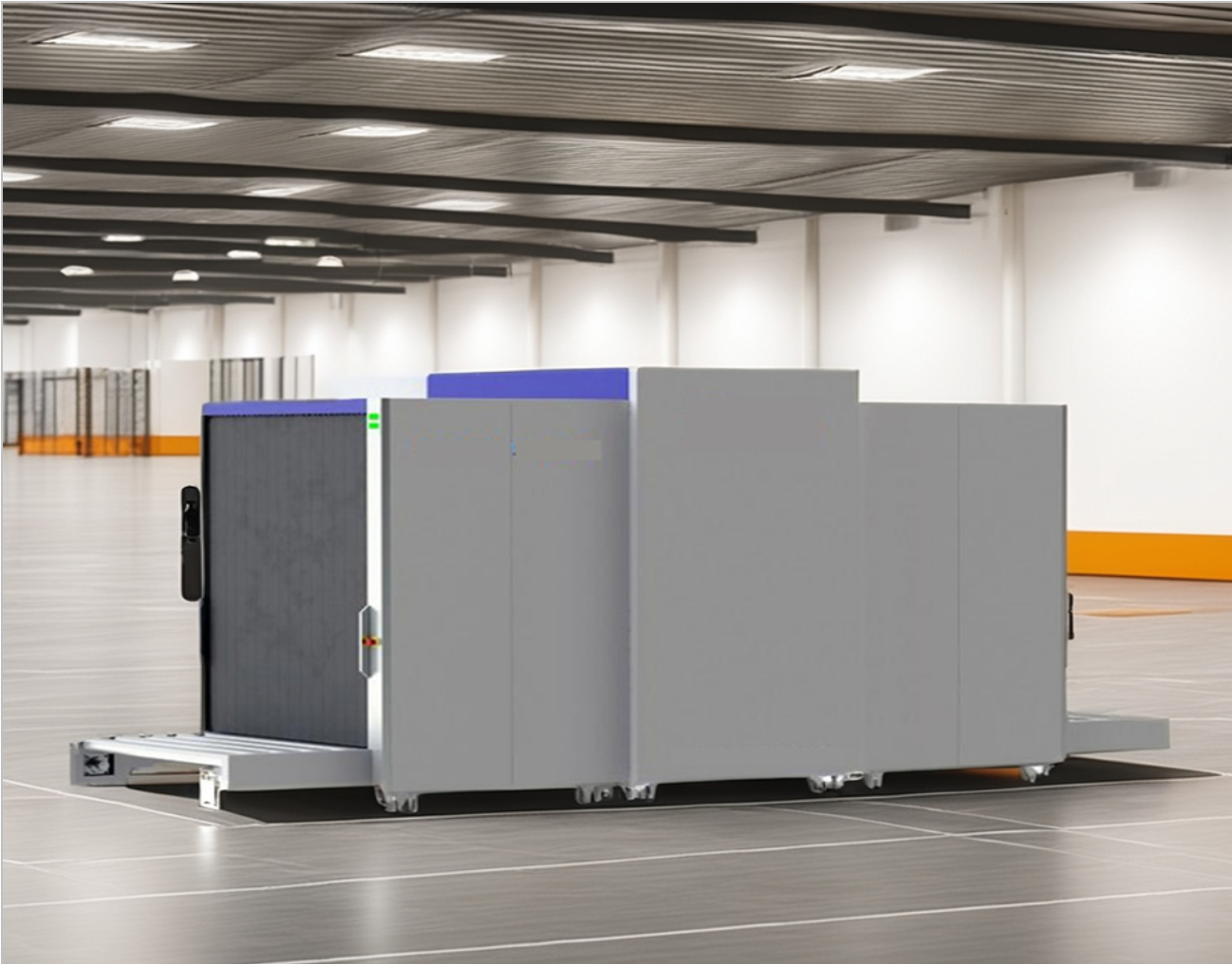

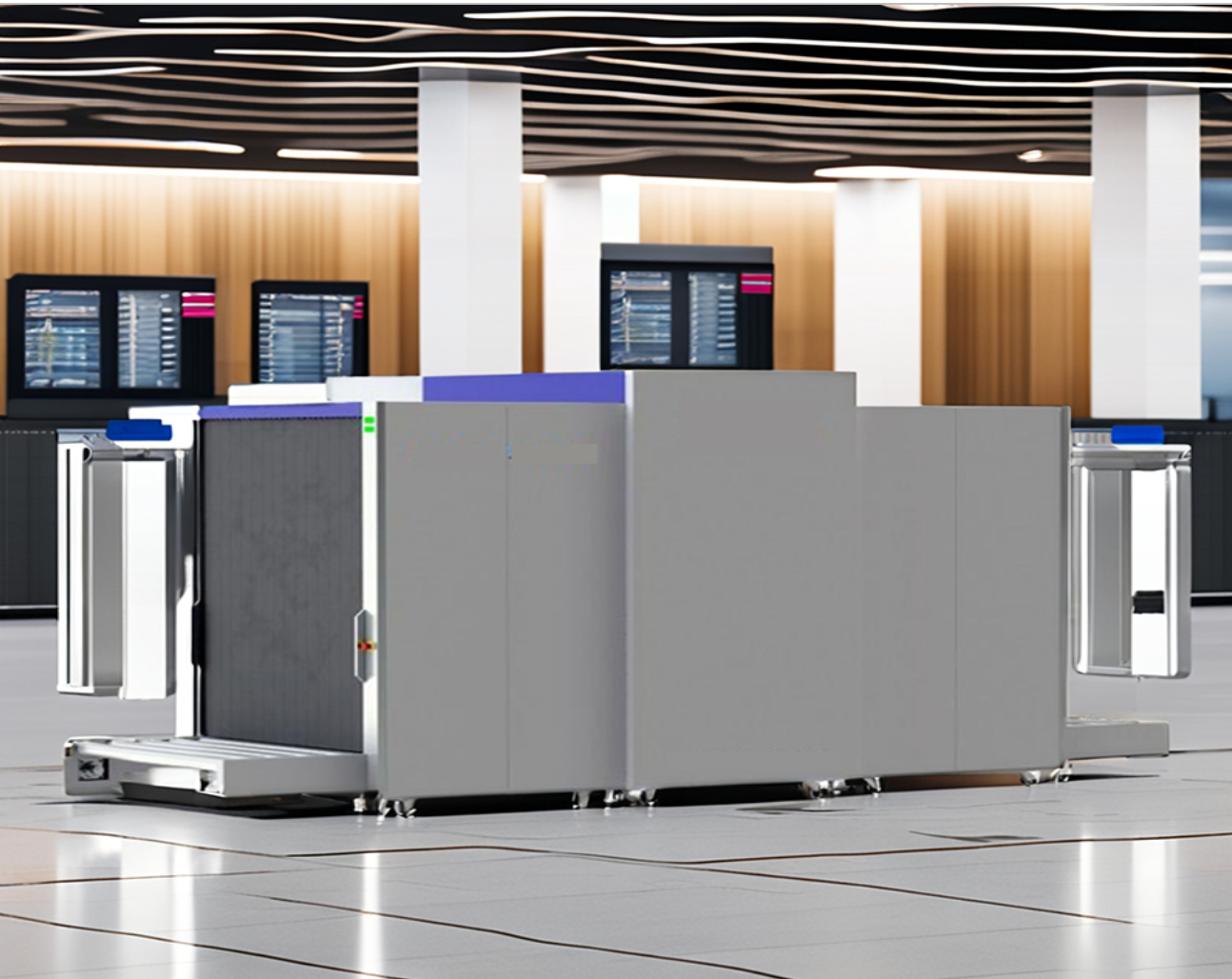

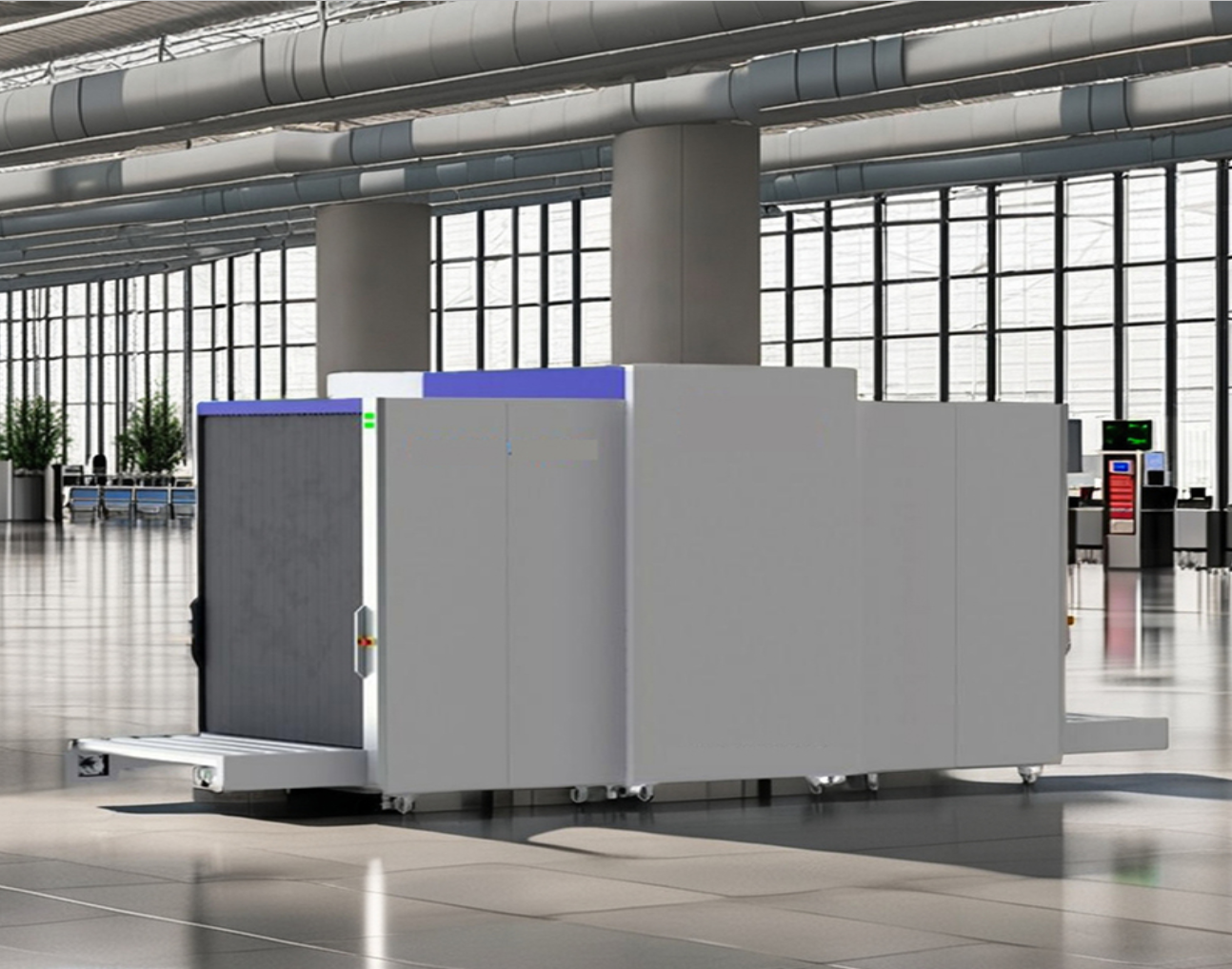

VK-SE150180 High Security X-ray Baggage Scanner

Product Introduction

The VK-SE150180 X-ray Baggage Scanner by Viking Technology utilizes advanced X-ray penetration technology. With a large 1510×1810mm tunnel, it accommodates oversized baggage and parcels, delivering fast, accurate detection of concealed threats and prohibited items. Its robust, modular design integrates all core controls into a stable floor-standing structure, eliminating complex top-mounted components. It offers independent image enhancement modes and supports up to 100,000 image storage records, achieving unprecedented detection precision even at maximum sensitivity.

Its 48-inch (1219mm) tunnel width far exceeds ADA requirements, enabling passage of stretchers, oversized wheelchairs, and bulky cargo. Installation is completed in just 15 minutes from unboxing.

General Specifications

• Model: VK-SE150180

• Form: Flatbed, Non-Portable

• Application: Security Check, Industrial Inspection

• Certification: CE, ISO

• Alarm Form: Display Alarm

• Operating Voltage: AC220V (±10%)

• Conveyor Speed: 0.20 M/S

• Penetration: 40mm Steel Plate

• Wire Resolution: 40AWG

• Image Storage: >100,000 Pictures

• Radiation Protection: Yes

• Self-Diagnosis: Built-in

• Alarm Function: High Density / Drug Detection

• Cooling: Sealed Oil

• Transport Package: Wooden Box

• Overall Dimensions: 5130×2725×2429 mm

• Tunnel Size: 1510×1810 mm

• Product Weight: 3500kg

• Conveyor Height: 350mm

• Operating Temperature: 0°C ~ 40°C

• Power Consumption: 3kVA

• Tamper Protection: 4-digit Custom Password

Advanced Functions

• 1510mm tunnel width, far exceeding ADA's 813mm requirement

• Multi-region imaging enhancement, supports dual high-brightness displays

• Statistics: Records inspection count and alarm events

• Customizable detection regions and image enhancement modes

• 4 preset sensitivity levels for different scenarios

• Safe for pregnant users and those with electronic devices

• Dual-energy penetration imaging for superior detection uniformity and sensitivity

Applications

Viking's VK-SE150180 X-ray Baggage Scanner delivers precise threat detection and reliable performance. It is ideal for airports, government buildings, prisons, ports, logistics hubs, and large public events. Cost-effective yet comparable to global premium security equipment, its large tunnel and flexible imaging settings make it the most adaptable high-throughput X-ray scanner on the market.

For detailed specifications, pricing, or custom solutions, please contact Dongguan Viking Technology Co.,Ltd. directly. We welcome your inquiries and look forward to serving your security needs.
