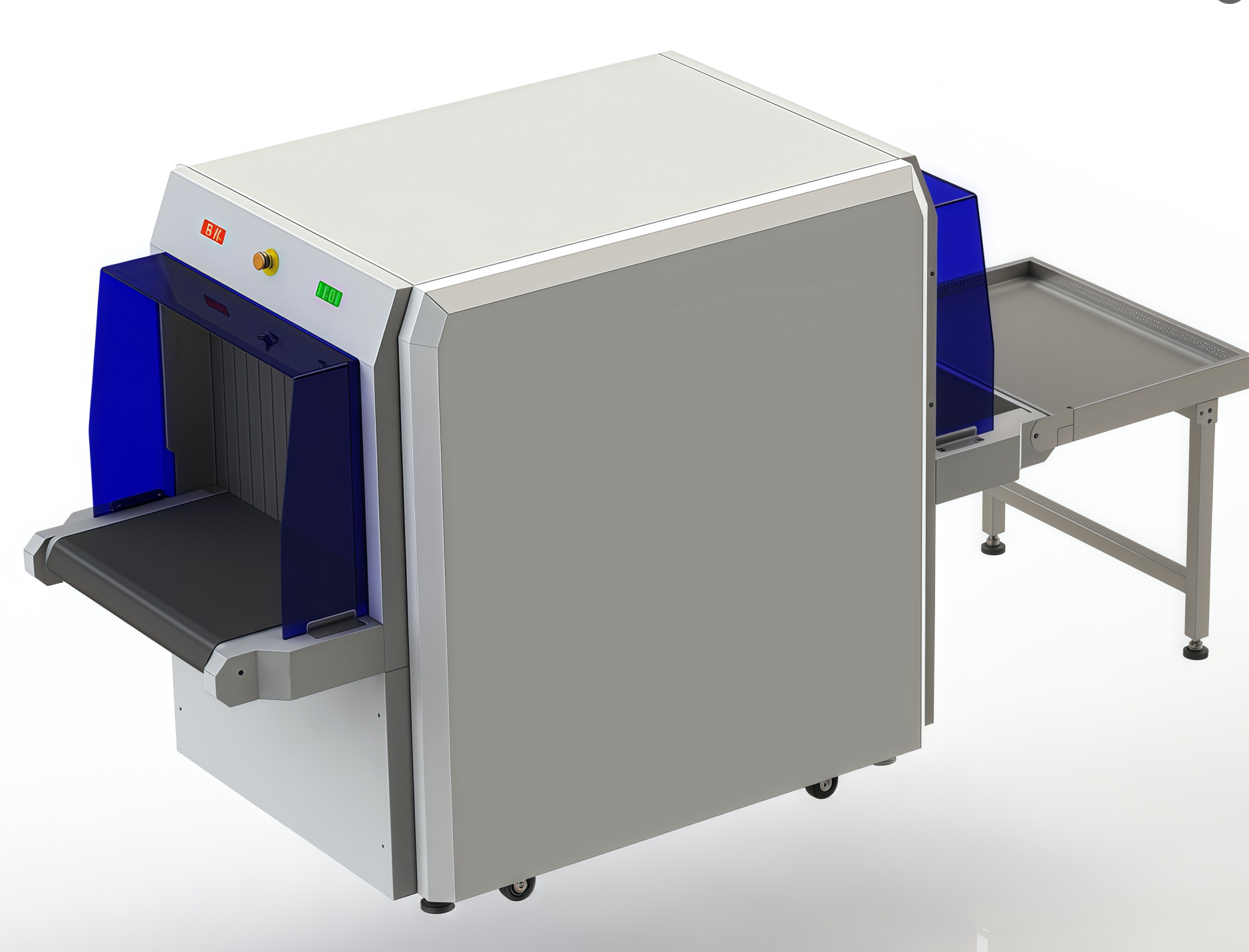

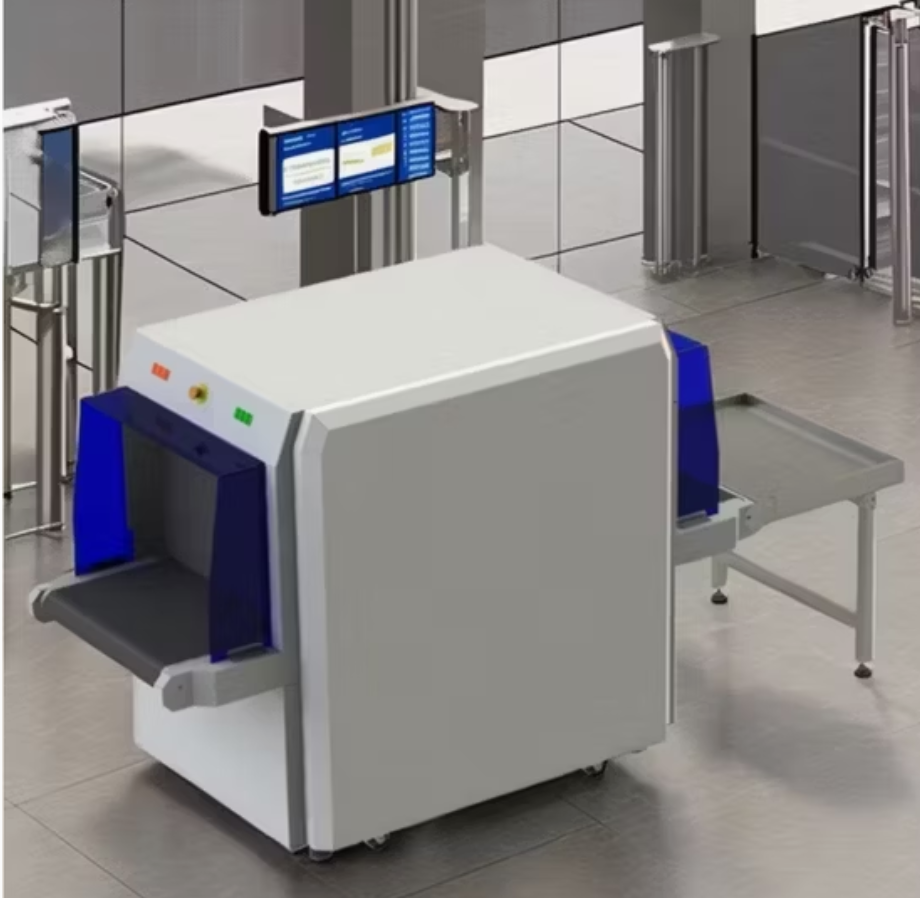

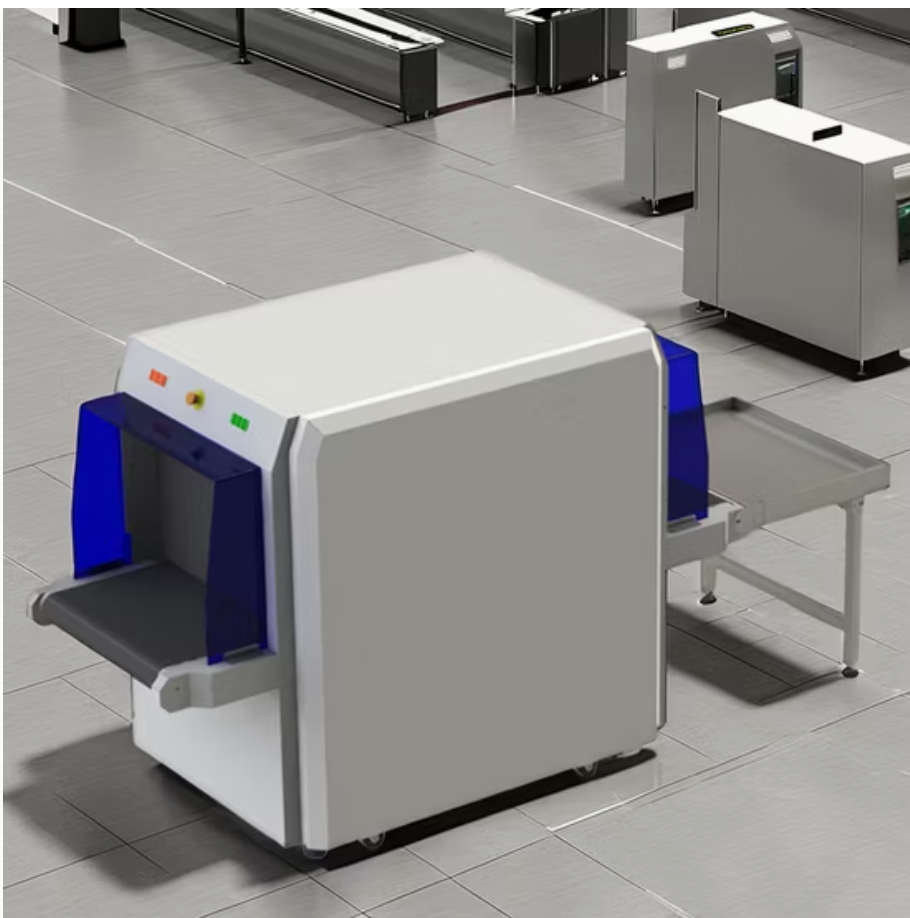

The Vk-Bi7555 is a high-performance dual-energy backscatter X-ray baggage scanner featuring cutting-edge L-shaped photodiode and backscatter sensor technology for non-intrusive detection of concealed threats. It is suitable for various high-security environments such as airports, subway stations, prisons, customs, and major public events. It supports multiple image processing modes and customizable detection settings.
The Vk-BI7555 Dual-Energy Backscatter X-ray Scanner delivers professional-grade security screening for high-risk environments. Integrating dual-energy penetration with backscatter imaging, it accurately identifies explosives, drugs, and radioactive materials with exceptional clarity.
✓ Advanced Detection L-shaped photodiode + backscatter sensor
✓ PLC Control System Precise automation & stable operation
✓ Rapid Deployment 15-minute setup from unboxing
✓ Safety Certified Radiation levels near natural background
Tunnel Size 755×555 mm
Max Penetration 38mm Steel Plate
Sensitivity Adjustable (0-255)
Image Storage >100,000 images
Physical Specs
Dimensions 2175×1005×1459 mm
Weight 480 kg
Power AC220V / 0.5kVA
Operating Temp 0°C to 40°C
Safety Standards CE, ISO Certified
Duty Cycle 100% Continuous
Cooling System Sealed Oil
Wire Resolution 40AWG
Dual-energy & backscatter imaging modes
10+ processing algorithms (enhancement, zoom, etc.)
Organic/Inorganic material differentiation
Adjustable sensitivity & alarm thresholds
4 preset modes (Luggage/Cargo/Security/Radiation)
Statistics tracking (inspection & alarm counts)
Advanced radiation shielding (natural background levels)
Automatic self-diagnosis system
100% duty cycle for continuous operation
Prisons & Correctional Facilities
Courts & Legal Institutions
Border Control & Customs
Airports & Airlines
Railway & Subway Stations
Seaports & Maritime
Embassies & Consulates
Data Centers & Research Labs
Major Event Venues
Cargo & Parcel Screening
Logistics Hubs & Warehouses
Corporate Security Checkpoints
| Model Number | VK-BI7555 |
| Form Factor | Flatbed, Non-Portable |
| Alarm Type | Visual & Audio Display |
| Cooling Method | Sealed Oil System |
| Transport Packaging | Wooden Box |
| Origin | Dongguan, China |
| HS Code | 9022191090 |
| Production Capacity | 1000 units/month |
CE Marking (European Conformity)
ISO Quality Management Standards
Radiation Safety Compliance
Industrial PLC Control Standards
