VK-SE6040 High Penetration X-ray Baggage Scanner

Product Introduction

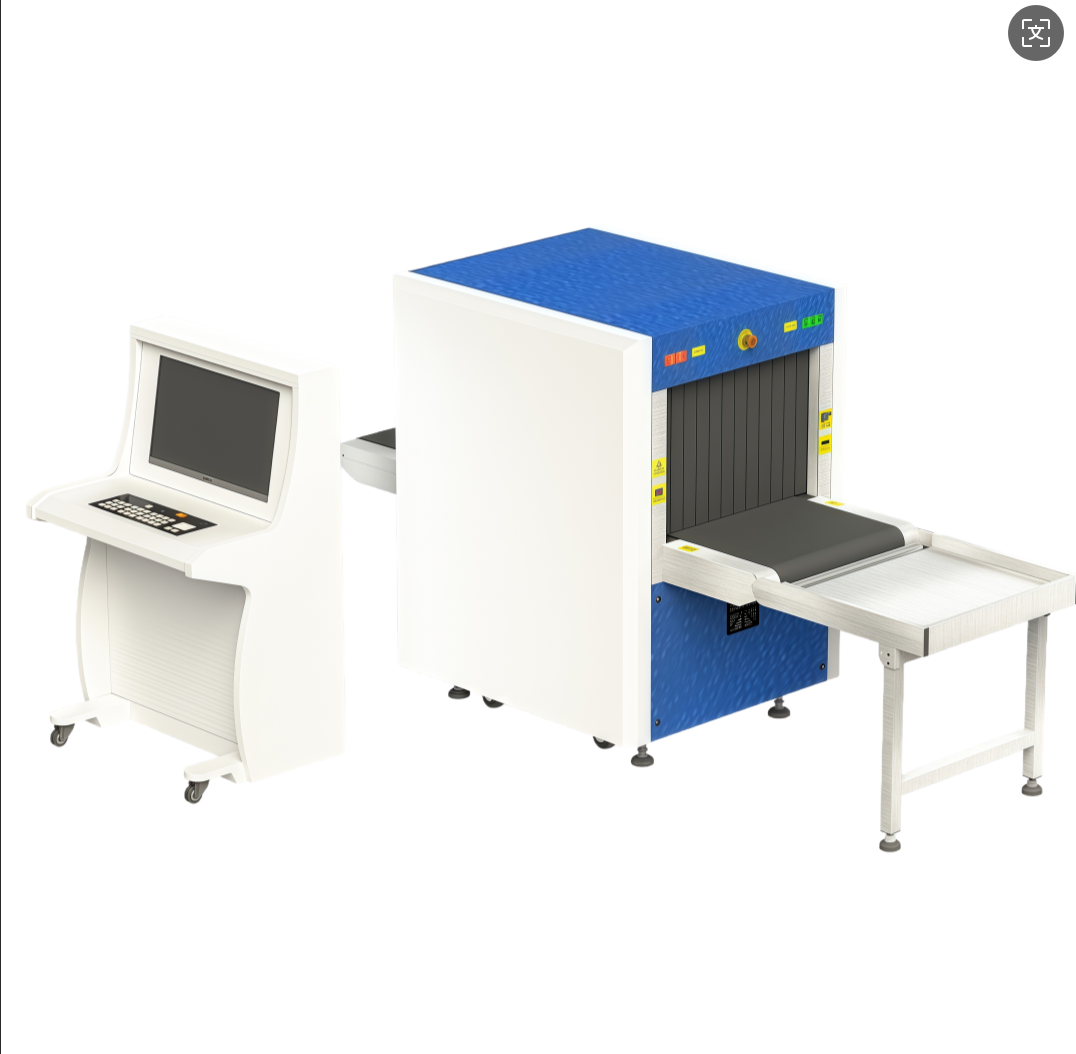

The VK-SE6040 X-ray Baggage Scanner by Viking utilizes cutting-edge dual-energy X-ray technology, with a compact integrated design that combines the scanning unit, conveyor belt, and control console. Viking has integrated all core functions into a stable industrial-grade system, enabling independent adjustment of penetration (140-160KV) and image enhancement, delivering unprecedented inspection accuracy. Even at maximum penetration, it can detect 34mm-43mm steel plates, and its high-resolution imaging clearly identifies organic/inorganic materials. With no complex disassembly required, this scanner supports both permanent installation and temporary deployment, and its modular design ensures installation and power-up in just 10 minutes.

Its tunnel size of 615mm(W)×454mm(H) far exceeds the standard for most mid-sized scanners, enabling it to handle oversized luggage, parcels, and cargo. This gives it unmatched practical capabilities, such as scanning large bags, boxes, and equipment, all thanks to its high penetration and adjustable image processing. Additionally, its installation guide is extremely simple, taking only 10 minutes from receiving the product to completing setup.

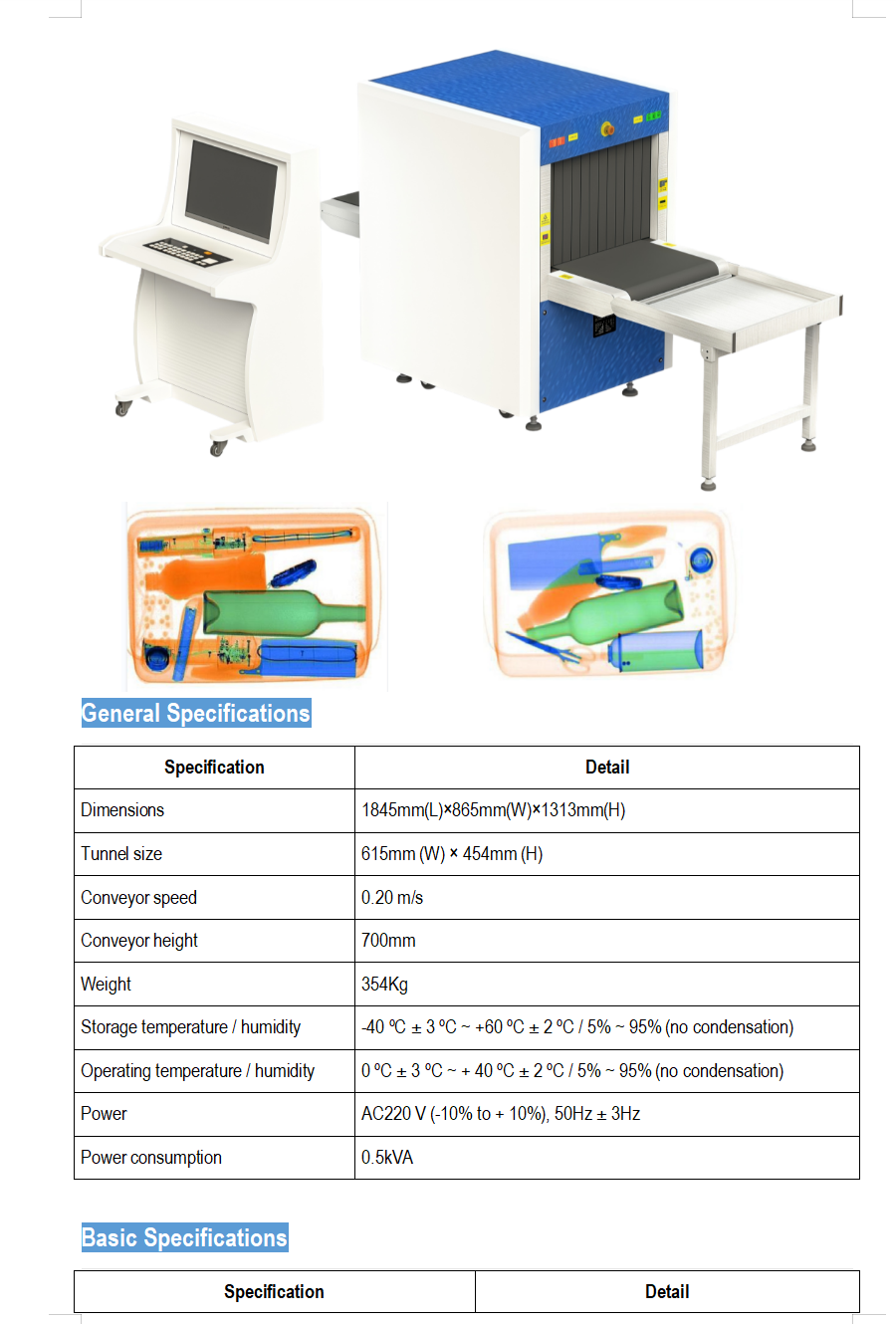

General Specifications

• Model: VK-SE6040

• Form: Flatbed, Non-Portable

• Application: Security Check, Industrial

• Certification: CE, ISO

• Alarm Form: Display Alarm

• Voltage: AC220V (±10%)

• Operating Temperature: 0°C ~ 40°C

• Storage Temperature: -40°C ~ +60°C

• Noise Level: <55db

• Conveyor Speed: 0.20m/S

• Wire Resolution: 40AWG

• Energy Type: Dual-Energy X-ray

• Installation Time: ≤10 Minutes

• Penetration Level: Adjustable 140-160KV

• Minimum Detectable Threat: 34mm (140KV) / 43mm (160KV)

• Overall Dimensions: 1845(L)×865(W)×1313(H) mm

• Conveyor Speed: 0.20m/s ± 0.02m/s

• Operating Voltage: AC220V (-10% to +10%), 50Hz/3Hz

• Anti-tamper Setting: System self-test & hardware diagnosis

• Shipping Weight: 400kg (per set)

• Transport Package: Wooden Box

• Tunnel Size: 615(W)×454(H) mm

• Power Consumption: 0.5kVA

• Origin: Dongguan China

• Production Capacity: 1000 pieces/Month

Advanced Functions

• Dual-View Scanning: Top-Bottom & Side-Side for comprehensive threat detection

• Dual-Energy Technology: Enhanced material discrimination for organic/inorganic items

• 100% Duty Cycle with sealed oil cooling for 24/7 operation

• Image Storage: >100,000 images for audit and compliance

• One-key shut-down, high density alarm, and drug/explosive powder detection

• Built-in Automatic Self-Diagnosis for proactive maintenance

• Ergonomic reading system and industrial PLC for long-term stability

• Continuous observation and 50-image playback for efficient review

• Multiple image processing features: Edge Enhancement, Partial Enhancement, Zoom In/Out

• Radiation Leakage <0.1µGy/h, ensuring operator and passenger safety

Applications

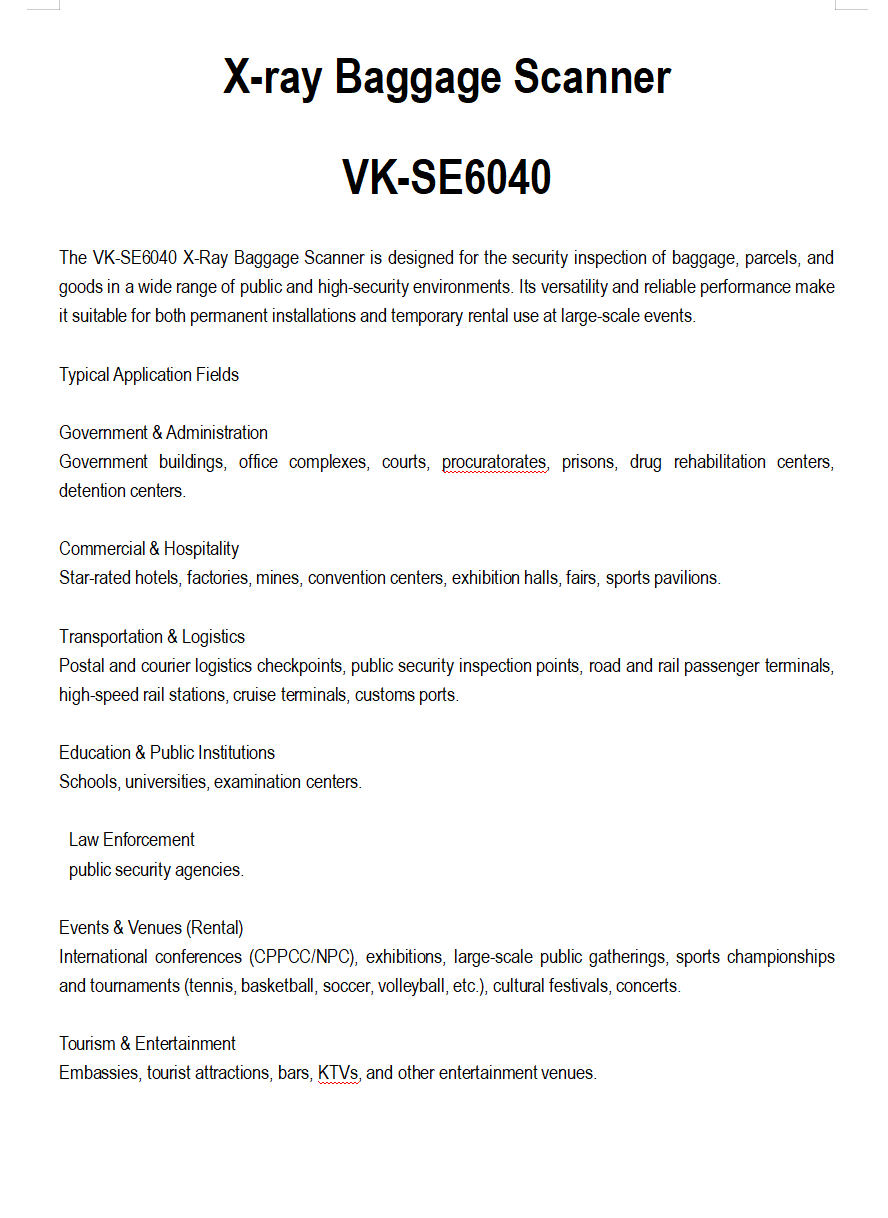

The Viking VK-SE6040 X-ray Baggage Scanner offers precise material identification and threat detection. This scanner is suitable for a wide range of environments, including but not limited to airports, government buildings, prisons, and sports venues. It is not only cost-effective but also provides the same level of security as professional inspection equipment from other global brands. With its high penetration and flexible deployment, no other mid-sized X-ray scanner on the market can offer such versatility.

For detailed specifications, pricing, or custom solutions, please contact us directly. We welcome your inquiries and look forward to serving your security needs.
