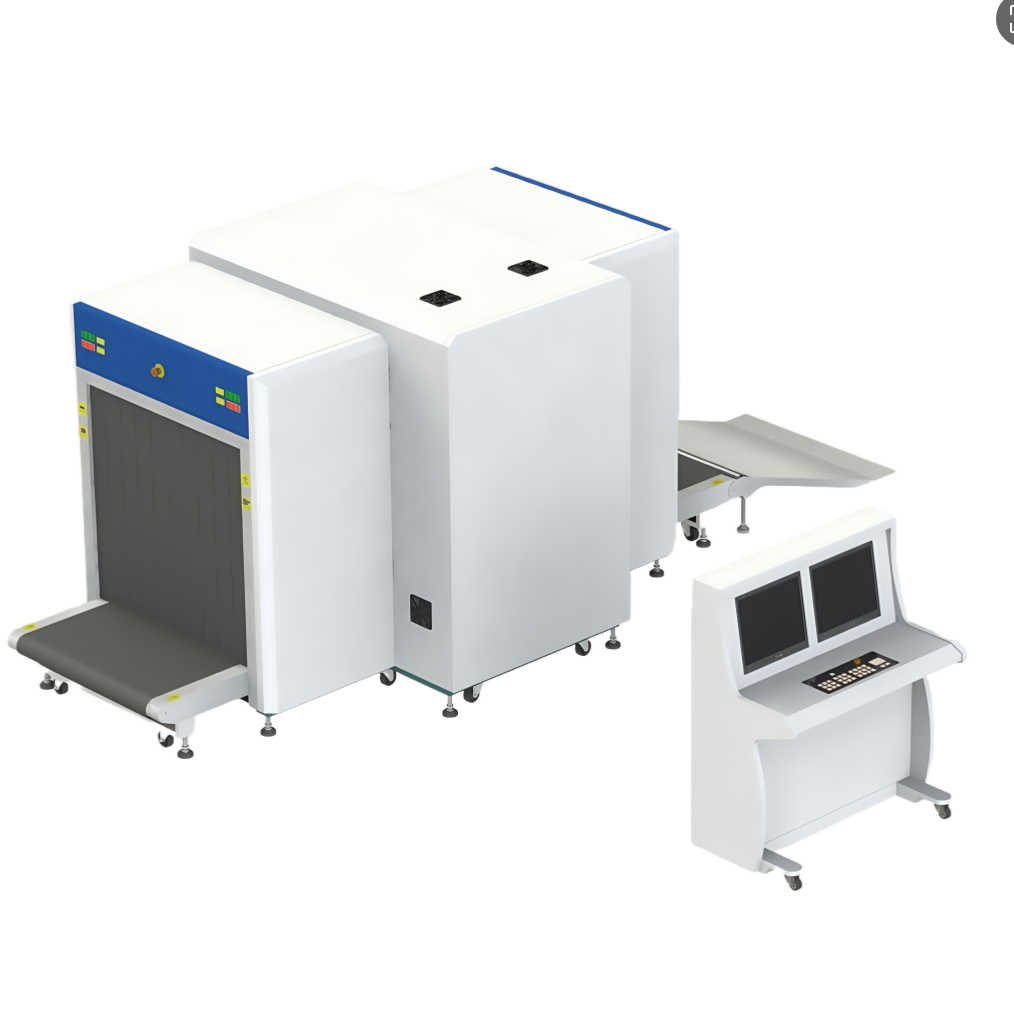

VK-SE100100D Dual-View Security X-ray Baggage Scanner

The VK-SE100100D is an advanced dual-view X-ray baggage scanner designed for high-throughput security checkpoints. It features a large 1005×1005mm tunnel, dual-energy imaging, and complies with stringent safety standards including CE and ISO certifications

VK-SE100100D DUAL-VIEW SECURITY X-RAY BAGGAGE SCANNER

Product Introudction

The VK-SE100100D X-ray Baggage Scanner from Viking operates on the principle of X-ray penetration, offering fast, reliable, and accurate detection of concealed items in baggage and parcels. With advanced dual-view imaging technology and dual-energy capabilities, it ensures enhanced material discrimination and detection accuracy in high-security environments.

It features a 1005×1005 mm tunnel to accommodate oversized luggage, with dual X-ray generators (Top-Bottom & Side-Side) for comprehensive scanning. Its advanced imaging processing, including edge enhancement and dual-energy penetration, delivers clear, detailed scans, while the radiation protection system ensures operator safety with background-level radiation exposure.

General Specifications

Wire Resolution	≤40AWG
Power Consumption	1kVA
Minimum Detectable Threat	40mm Steel Plate
Overall Dimensions	3782×1695×1743 mm (L×W×H)
Conveyor Speed	0.20m/s ± 0.02m/s

Operating Voltage	AC220V (-10% to +10%), 50Hz/3Hz
Operating Temperature	-10°C ~ +45°C
Storage Temperature	-20°C ~ +60°C
Conveyor Max. Load	200kg
Power Consumption	0.8kVA

Advanced Functions

Dual-View Scanning: Top-Bottom & Side-Side for comprehensive threat detection
Dual-Energy Technology: Enhanced material discrimination for organic/inorganic items
100% Duty Cycle with sealed oil cooling for 24/7 operation
Image Storage: >100,000 images for audit and compliance
One-key shut-down, high density alarm, and drug/explosive powder detection
Built-in Automatic Self-Diagnosis for proactive maintenance
Ergonomic reading system and industrial PLC for long-term stability
Continuous observation and 50-image playback for efficient review
Multiple image processing features: Edge Enhancement, Partial Enhancement, Zoom In/Out
Radiation Leakage <0.1μGy/h, ensuring operator and passenger safety

Applications

Viking's VK-SE100100D X-ray Baggage Scanner provides efficient, non-intrusive baggage inspection, helping organizations maintain high security standards in critical environments. It is widely deployed in national security and public safety settings, including:
